| Brand Name : | UNITY |
| Model Number : | ECS3030-MK |
| Certification : | EN1303:2005,EN1634:1:2014 |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 120000 ea per month |
| Delivery Time : | Depends on |
ECS3030-MK Residential Narrow Mortice Lock With Singe Profile DIN18252 Standard
Master key Euro Profile DIN18252 mortice lock cylinder is a manageable euro cylinder with keying ability suitable for commercial or residential application with specific access requirements. Keyed operation from either side(inside or outside).
Specifications and Features
- Standard euro profile dimension according to DIN18252
- Solid brass material
- 5 or 6 pins constructions
- Master key Euro Profile DIN18252 mortice lock cylinder can be
customized with various lengths available for different door
thickness
- Symmetrical and asymmetrical variants are available to work with
different lock installation positions
- Optional anti-drill pins and anti-pick pins
- Enhanced attack resistance provided by UNITY security escutcheons
- Master keying service available upon request
EN1303:2005 Classification
| 1 | 6 | 0 | 1 | 0 | C | 5 | 2 |
Available Models|Size
| Item No. | A (30-60mm) | B (30-60mm) | |
| ECS3030 | 30 | 30 | |
| ECS3035 | 30 | 35 | |
| ECS3535 | 35 | 35 | |
| ECS4040 | 40 | 40 | |
1. Dimensions in MM 2. Other sizes unlisted are available upon request | |||

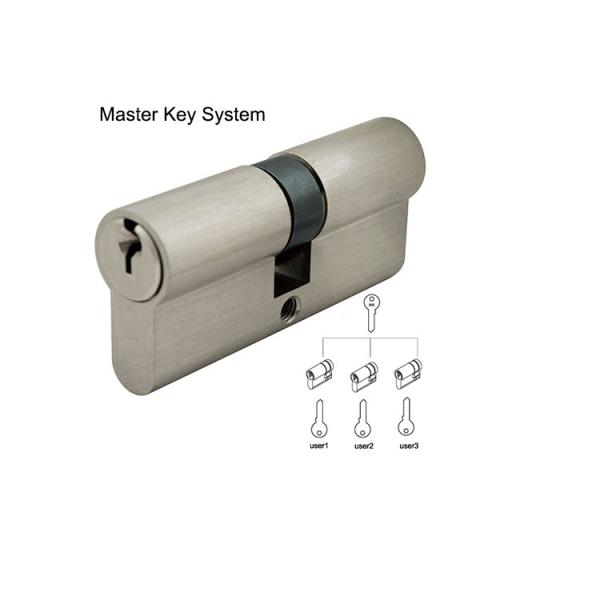

Master Key System
Finishes
| - Satin Nickel (SN) - Brass Polished (BP) | - Nickel Plated (NP) - Antique Brass (AB) |
Standards and Certification
| UNITY master key euro profile mortice locks are successfully type-tested for conformity to all of the requirements of EN1303:2005 | |
| Master key mortice lock cylinders have successfully passed 240-minutes fire test of metal door assemblies to EN1634-1:2014 | |
| All tests performed independently and certified by Exova/Warringtonfire/ Warrington APT. Test reports and/or certificates are available on request |
Key Bow Options
Related Products
Q: Are your company a factory or trading company?
A: UNITY started from a trading company, but now we have two
factory plants to serve you.
As a manufacturer, we have more than 20 year's experience and are
confident to offer you optimal manufacturing solutions.
Q: What kinds of certificates do you have?
A: UNITY have CE and UL certificate, all our product design follows
up the international standard, such as the EN/CE, UL, ANSI standard.
Q: Do you accept OEM or ODM?
A: Yes, UNITY is professional in OEM and ODM with more than 20 year's experience. And UNITY has set up
long-term cooperation with many famous brands home and abroad.
Q: How about your quality system?
A: As a factory, UNITY has been certified by ISO9001 and ISO14001 to well control our production and service quality, all steps
under control are strictly processed according to these
authoritative systems and standards.
Q: Can you send me a sample before placing an order? Is it free?
A: Yes, of course. UNITY will translate all your requirements into
real products and then send you samples for your confirmation.
The sample is free, you just need to pay for the express cost.
Q: How many days do you need to prepare a sample?
A: Usually 2-5 days.
Q: What’s the stainless steel grade you are working on now?
A: We are working mostly in SUS304 and SUS316, some items can be SUS201 as well.
Any more information on further questions, please just feel free to contact us.
|
|
