| Brand Name : | OEM |
| Model Number : | ML107204 |
| Certification : | EN12209, EN1634-1, CE, Certifire |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 200,000 ea per month |
| Delivery Time : | 35 days |

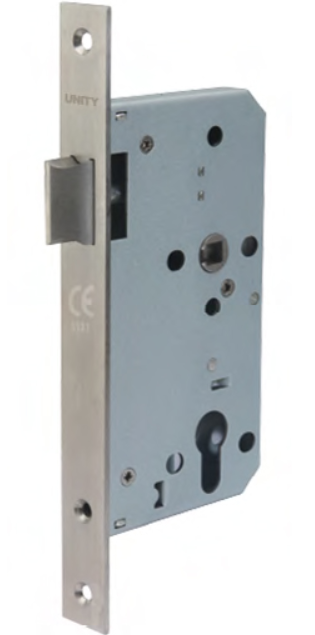

Certifire Stainless Steel Mortice Door Lock for Fire Door Nightlatch Storeroom EN1634 Fire Tested EN12209 and CE Marking
| Application | UNITY ML1072 Series Mortice Lock is designed for high frequency usage applications such as public access buildings where deliberate abuse likely takes place |
| Specification | 1.Modular case across functions for rapid door prepping and installation |
| 2.72mm centers, backset in 50/55/60/65mm | |
| 3.8mm follower with spindle gripping function | |
| 4.Reversible latchbolt in solid stainless steel | |
| 5.Double throw deadbolt in solid stainless steel with 20mm projection | |
| 6.Suitable for sprung and most un-sprung lever furniture | |
| 7.Stainless steel faceplate and strike in square and radius version (radius version improves door prep efficiency with machine routing) | |
| 8.Compatible with bolt through furniture and escutcheons of 38mm centers |
Standards and Certification
 | Successfully type-tested for conformity to all of the requirements of EN12209: 2003 |
 | Successfully passed and exceeded 240-minutes fire test of metal fire door assemblies to EN1634-1: 2014 |
 | CE Declaration of Conformity available upon request |
 | Meets the dimensional recommendations of BS8300 and Approved Document "M" |
 | UNITY ML1072 series locks are approved by Certifire.* Certifire No. CF5333 |
 | ALL EN/CE/Certifire tests performed independently and certified by Exova/Warrington Fire/Warrington APT. Test report/certificate are available upon request. |
* Certifire is an independent third party certification scheme that assures performance, quality and traceability of fire protection products
EN12209:2003 Clssification
| 3 | X | 8 | 1 | 0 | G | - | B | 0 | 2 | 0 |
Illustration
From outside: key retrachs latchbolt.No handle is fitted. |  | From inside: Handle retrachs latchbolt. |
ML107204 Nightlatch /Storeroom |  |
50mm Backset: ML107204-50
55mm Backset: ML107204-55
60mm Backset: ML107204-60
65mm Backset: ML107204-65
|
|
