Certifire Stainless Steel Mortice Door Lock for Fire Door 4 hour EN1634 Fire Tested EN12209 and CE Marking

Standards and Certification

	Successfully type-tested for conformity to all of the requirements of EN12209: 2003
	Successfully passed and exceeded 240-minutes fire test of metal fire door assemblies to EN1634-1: 2014
	CE Declaration of Conformity available upon request
	Meets the dimensional recommendations of BS8300 and Approved Document "M"
	UNITY ML1072 series locks are approved by Certifire.* Certifire No. CF5333
	ALL EN/CE/Certifire tests performed independently and certified by Exova/Warrington Fire/Warrington APT. Test report/certificate are available upon request.

* Certifire is an independent third party certification scheme that assures performance, quality and traceability of fire protection products

EN12209:2003 Clssification

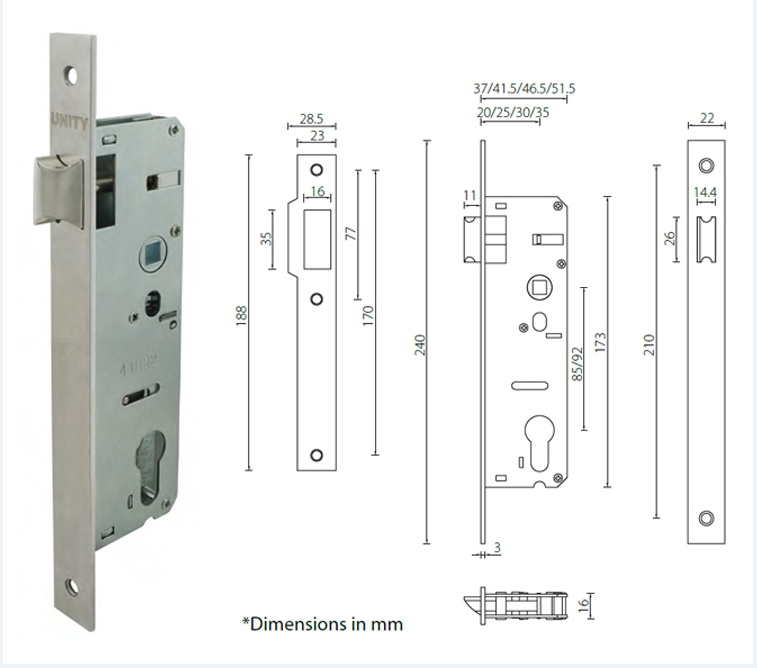

Illustration

From outside: Key operates deadbolt and latchbolt. Handle retrcts latchbolt

From inside: Key or thumbturn operates deadbolt and latchbolt. Handle retracts latchbolt.

ML107201 Sashlock/Entry 72mm Center

50mm Backset: ML107201-50

55mm Backset: ML107201-55

60mm Backset: ML107201-60

65mm Backset: ML107201-65

Started from a trading company found in 1998, Unity has more than 20 years of

manufacturing and trading experience in the architectural hardware industry.

Thanks to the rapid business growth, we expanded our company from trading

to OEM manufacturing, now we have two well-equipped factories, separately

located in Wuxi and Jiangmen.

UNITY aims to provide an optimal one-stop solution for our customers from

requirement translation, specification defining, prototyping, and simulation,

product testing and verification, production planning and management,

quality assurance, consolidation, and logistics.

Equipped with complete machines and personnel, all Unity manufacturing activities

are strictly processed according to ISO 9001 and ISO 14000 to guarantee the quality

of our products and service.

UNITY works with accredited testing and certification organizations such as

Exova/Warrington Fire at the UK, and Intertek NA at the USA for independent

testing. UNITY can offer a suite of products that are tested and certified to

EN1634-1 and UL10c fire rating. We also offer CE/Certifier marked products

that are suitable for relevant commercial applications.

Certificates and test reports are available upon request.
